Spine 3D

3d analysis of the vertebral column

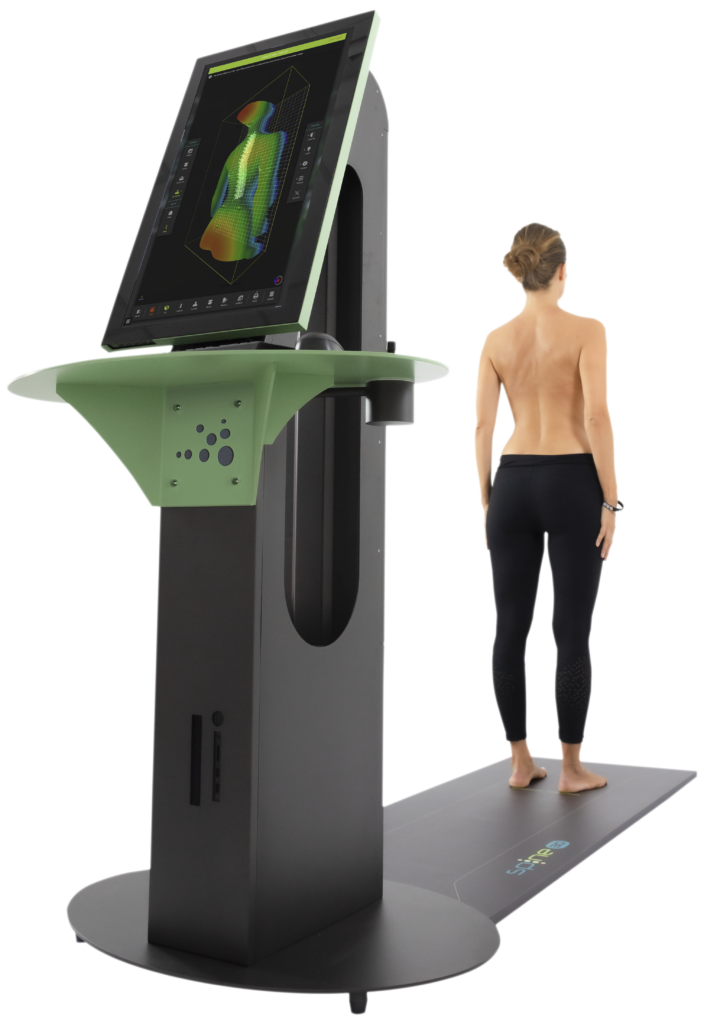

Spine3D allows a non-invasive scanning of the vertebral column thanks to LiDar technology (Light Detection and Ranging). Non-invasive and free of radiation, it allows to carry out repeated analysis on the same subject, without any contraindications. Thanks to the use of infrared rays, it can acquire three-dimensional spinal morphology images in any external light condition. For immediate feedback, it also allows the import and overlapping of RX and images. The device offers various clinical parameters, such as posture analysis, scoliosis analysis and all possible deformities of the spine (lateral, frontal and sagittal), rotation of the vertebrae and pelvic position.

product features

NON-INVASIVE SCANNING

Thanks to a markerless, radiation-free and non-invasive scanning method, it allows 3D acquisition of the patient's shoulders, back and pelvis

QUICK AND EASY
EXAMS

Acquisition with RGB and infrared cameras (ToF cameras) are not affected by ambient light interference. Automatic identification of the reference points with the possibility of manual modification.

automatic
reports

Clinical parameters and complete information, with automatic reports, useful for diagnosing spinal pathologies and postural problems.

TECHNICAL FEATURES

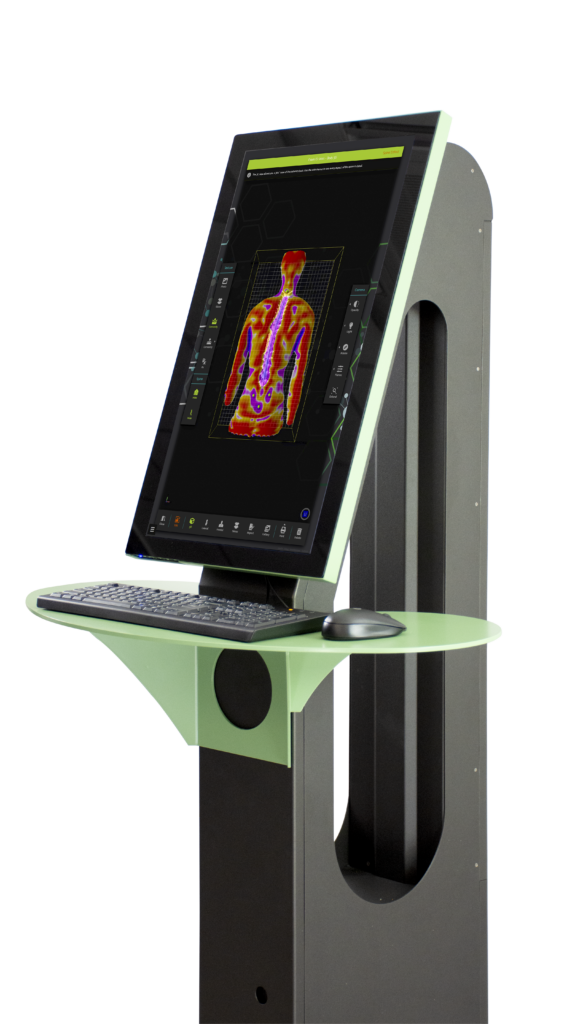

  • ALL-IN-ONE system
  • High precision 3D reconstruction
  • XYZ resolution: 1 mm
  • 27” vertical touch screen
  • Latest generation ToF camera
  • Pc with integrated wireless card
  • Motorized tower with joystick control
  • Multi-user software with password protection
  • Patient archive with the possibility of acquiring images
  • Multi-language mode also for printing reports
  • Intuitive and easy-to-access menus
  • Automatic reports based on the normal range of parameters that can be exported in pdf format
  • Automatic reference matching
  • Calculations automatic angles and symmetries

TECHNICAL FEATURES

  • ALL-IN-ONE system
  • High precision 3D reconstruction
  • XYZ resolution: 1 mm
  • 27” vertical touch screen
  • Latest generation ToF camera
  • Pc with integrated wireless card
  • Motorized tower with joystick control
  • Multi-user software with password protection
  • Patient archive with the possibility of acquiring images
  • Multi-language mode also for printing reports
  • Intuitive and easy-to-access menus
  • Automatic reports based on the normal range of parameters that can be exported in pdf format
  • Automatic reference matching
  • Calculations automatic angles and symmetries
